1x 5050

KWD 2.500
Brand
Othmro
Weight
120 g
Color1x 5050
– 1 +

Special Features

  • 【Size】-Bore:1.95"/50mm, Outside Daimeter: 2.15"/55mm, Length:1.56"/40mm
  • 【Material】-Carbon steel cast copper.Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer,They are self-lubricating, making them maintenance-free. High wear-resistant and corrosion-resistant.Oilless, good frictional property.
  • 【Function】-Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.The bushings can be used for different purposes, such as positioning, wear and vibration reduction, or to isolate the shaft from special media to increase the life of the shaft.
  • 【Application 】-Oilless Bushing Sleeve Bearing for general-purpose where moderate speeds and loads are present. Sleeve bearings are used in a vast variety of industrial equipment. Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery
  • 【More】-Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.They also can be used for reducing bore diameter or replacing worn-out original bushings on wheels.

Description

Size:50mmx55mmx40mm

Specification:
Bore Diameter:1.95"/50mm
Outside Diameter：2.15"/55mm
Length：1.56"/40mm
Material:Carbon Steel Cast Copper
Friction Factor (Dry Friction): 0.04-0.2

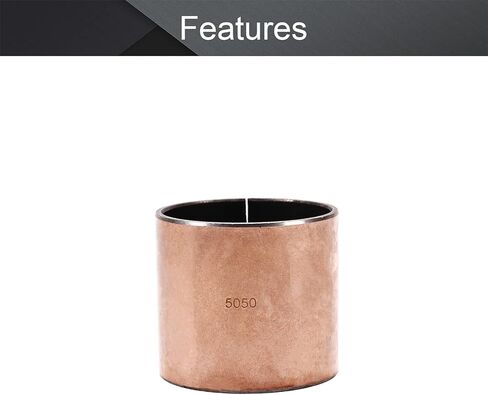

Features:
1.Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface.
2.Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
3.Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.
4.Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.

Note: Spilt Line can not be used for bearing.

Package Contents:
1 pcs x Sleeve Bearings
