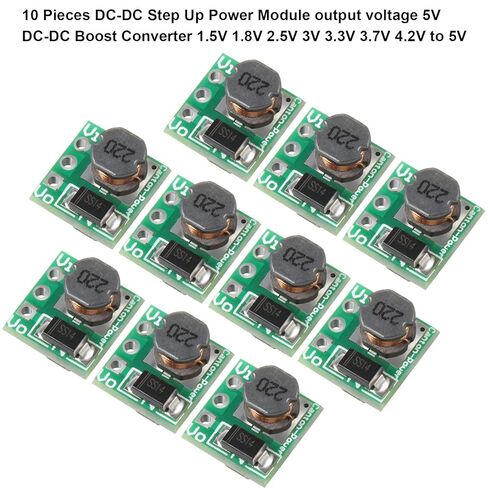

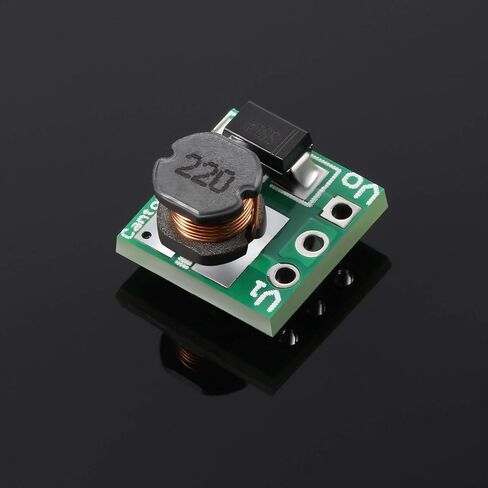

Weewooday Dc-Dc Step up Power Module Output Voltage 5v Boost Converter 1.5v to 5v Regulator Voltage Boost Converter Board(10 Pieces)

KWD 4.500
Brand
Weewooday
Weight
1 g
Number of Items10
– 1 +

Special Features

  • Widely support: mini DC-DC voltage converter can support 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V
  • Frequency and conversion efficiency: DC-DC step up power module's operating frequency is 150KHZ with typical conversion efficiency of 85%
  • Basic detail: input voltage: 0.9-5V; Output voltage: 5V; Maximum output current: 480 mA; Please know the basic information about the product before you ordering it

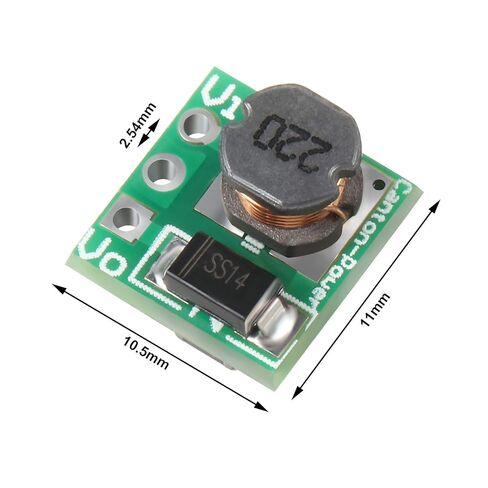

  • Dimensions: 11mm x 10.5mm x 7.5mm (ultra-small module, 1mm=0.0393inch); Pin: 2.54MM pitch; Weight: about 1g

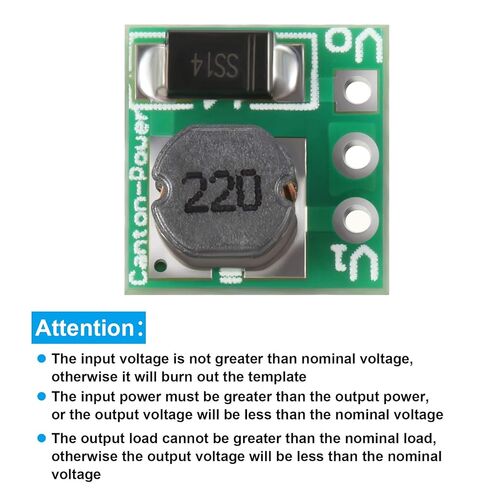

  • Attention: the input voltage must not be greater than nominal voltage, otherwise it will burn out the template; The input power must be greater than the output power, or the output voltage will be less than the nominal voltage

Description

Features:

Wide application:
The DC to DC boost converter can be powered by any suitable DC power source, such as a battery, solar panel, rectifier, DC generator and so on, bringing convenience to your life.

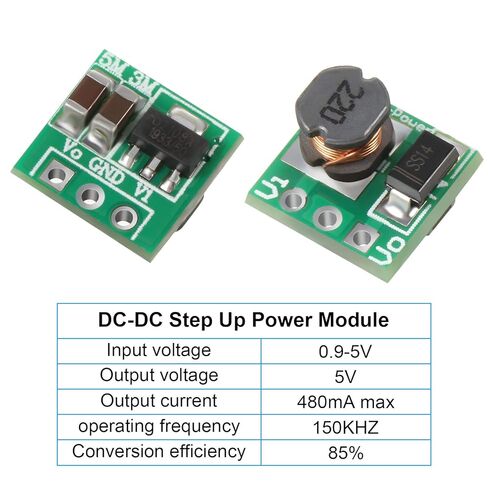

Specifications:
Output voltage: 5V
Output current: 480mA max
operating frequency: 150KHZ
Conversion efficiency: 85%
Pin grid spacing: 2.54 mm
Size:11mm x 10.5mm x 7.5mm
Color: as picture shown

Package included:

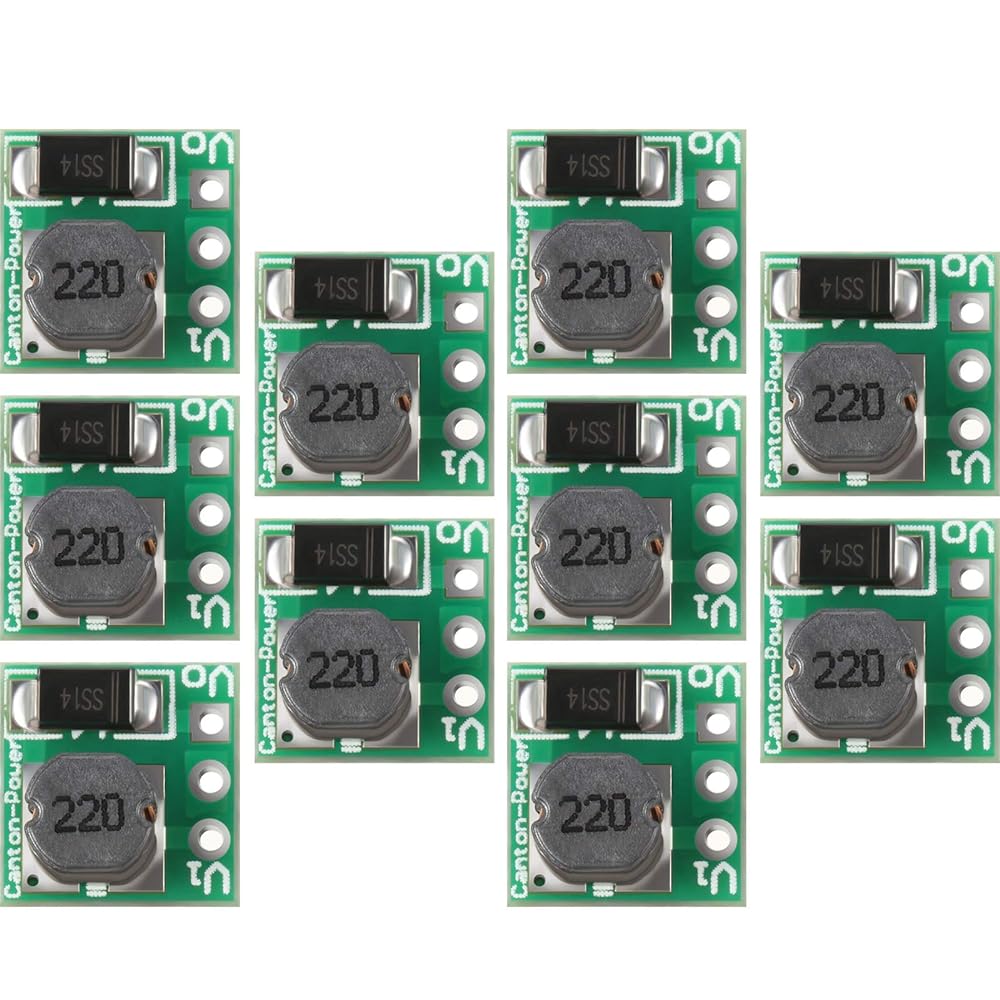

10 x DC-DC step up power modules

Note:
Manual measurement, please allow slight errors on size.
