Specifications:

--Colour: Yellow
--Part Number: 905-212
--Material: ABS

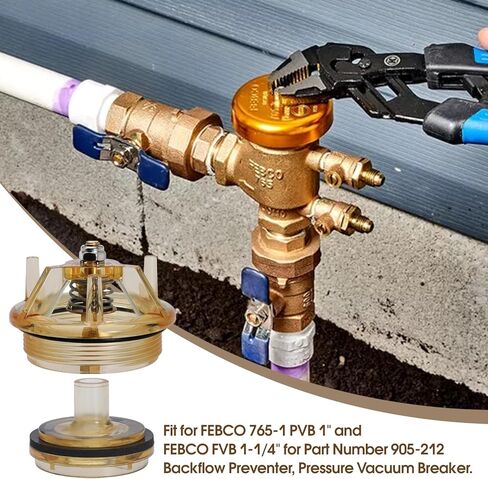

--Fit for FEBCO 765-1 PVB 1"
--Fit for FEBCO FVB 1-1/4"

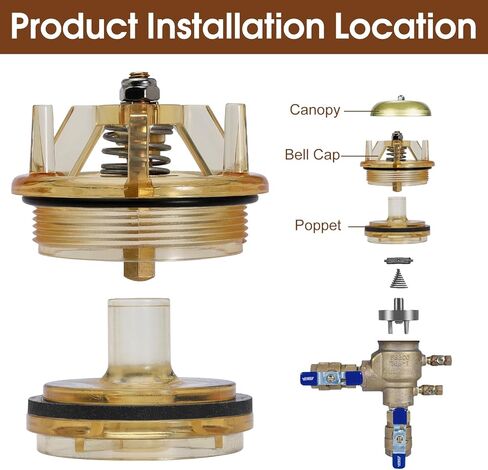

How to install?

1. Close the inlet and outlet shut-off valves to drain the residual water.
2. Remove the old bonnet and poppet and place the new poppet into the chamber.
3. Unscrew the nut from the top of the bonnet.
4. Put the bonnet post through the bonnet hole and turn it clockwise to fix the bonnet and poppet together.
5. Put the nut on the bonnet and tighten it.

Note:

A. In a few cases, if the problem of not tightening occurs, it is recommended to apply lubricant to the bonnet area as well as the threads. A wrench can also be used to tighten it properly. Do not over-tighten and cause damage to the product.

B. After the installation is completed and the inlet valve is opened, splashing is normal, and the splashing will stop after the device is pressurized.
