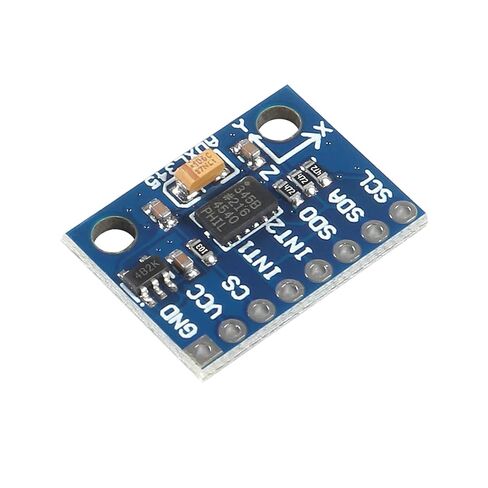

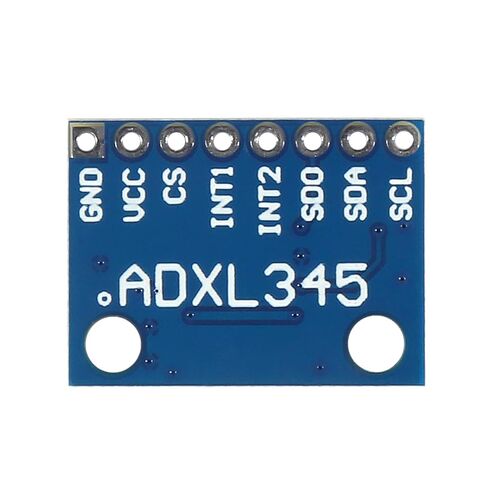

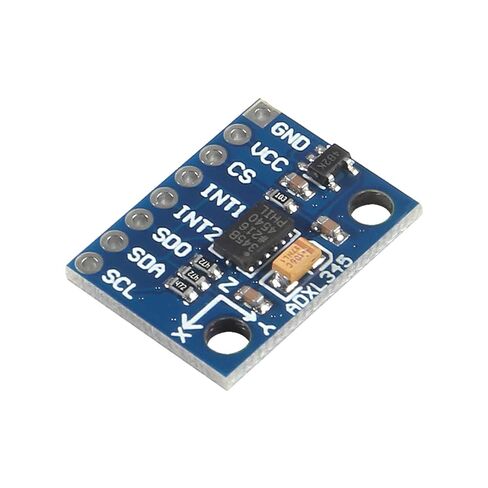

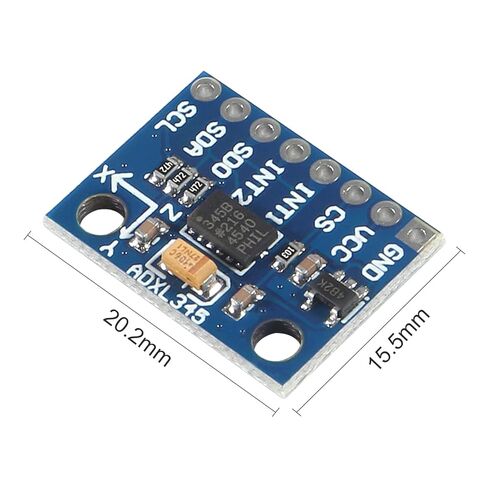

2pcs GY-291 ADXL345 3-Axis Digital Acceleration IIC/SPI Transmission of Gravity Tilt Module

KWD 2.500
Brand
AEDIKO
Category
Sensors
Weight
37 g
– 1 +

Special Features

  • GY-291 ADXL345 is a Small, Thin, Ultra-Low Power 3-Axis Accelerometer with High Resolution (13 bits) and Measurement Range of ± 16g
  • GY-291 Sensor Digital Output Data is in 16-bit 2 Complement Format and is Accessible via SPI (3-wire or 4-wire) or I2C Digital Interface
  • High Resolution :GY-291 ADXL345 Sensor Come with High Resolution (3.9 mg / LSB) Enables Measurement of tilt angle changes of less than 1.0 °
  • Low-Power Mode:ADXL345 Sensor Supports Motion-Based Intelligent Power Management for Threshold Sensing and Motion Acceleration Measurement with Low Power Consumption
  • Application:ADXL345 is Perfect for Mobile Device Applications,Which can Measures Static Gravitational Acceleration in Tilt Detection Applications as well as Dynamic Acceleration Due to Motion or Impact

Description

Specification:
Main Chip: ADXL345
Model: GY-291
Power Supply: 3-5V
Means of Communication: IIC / SPI Communication Protocol
Measuring Range: ±2g /±16g
Digital-Output Triple-Axis Accelerometer with a Programmable Full Scale Range of ±2g, ±4g, ±8g and ±16g and Integrated 16-bit ADCs
Accelerometer Normal Operating Current: 450µA
Ultralow Power: as low as 23 μA in Measurement Mode and 0.1 μA in Standby Mode at VS = 2.5 V (typical)
Sleep Mode Current: 8µA
Communication: SPI (3- and 4-wire) and I2C Digital Interfaces
User-Programmable Interrupts
Wake-On-Motion Interrupt for Low Power Operation of Applications Processor
Package Contents:

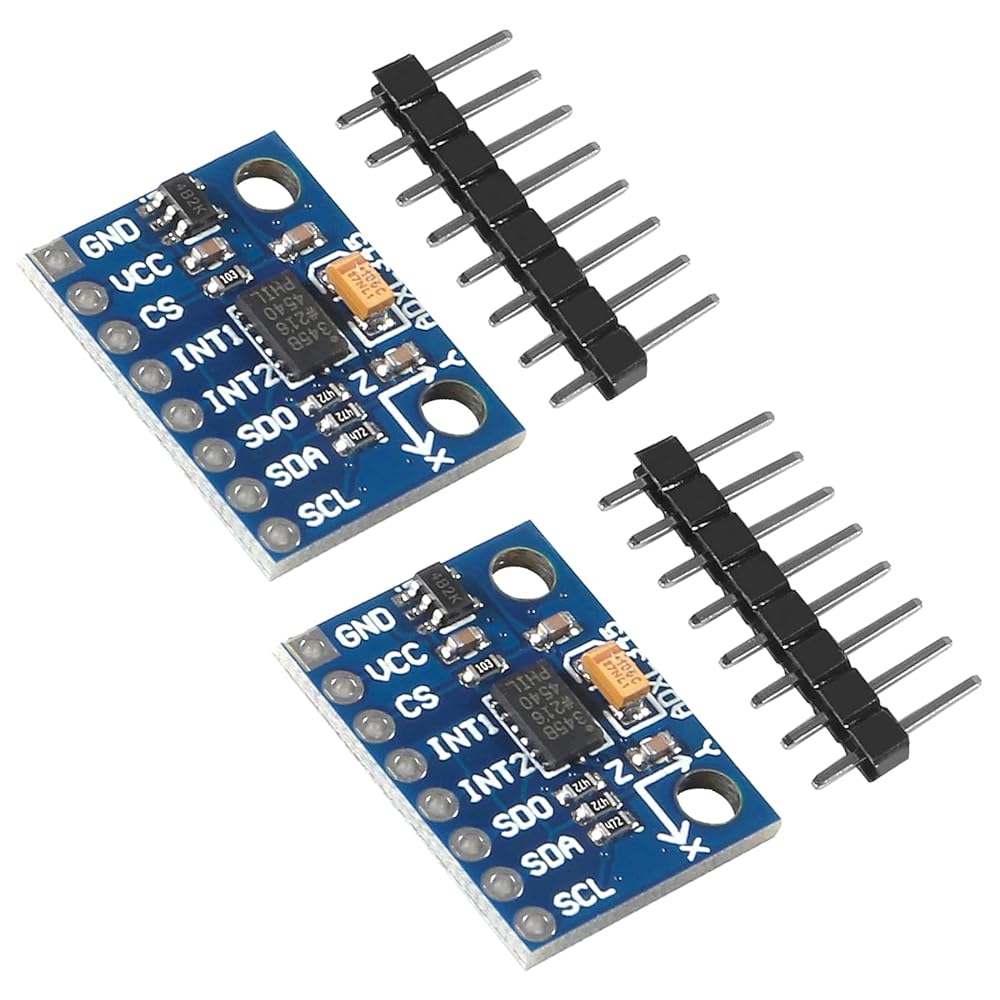

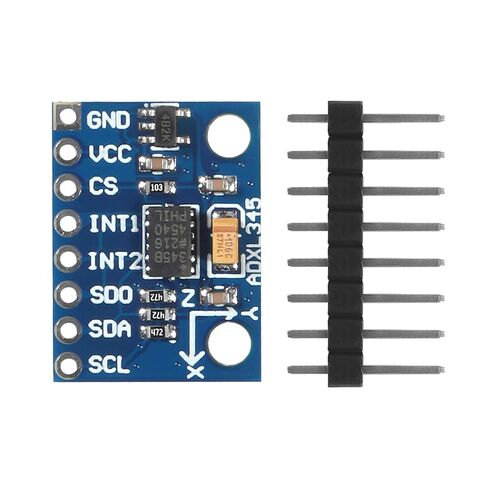

2x GY-291 ADXL345 3-Axis Digital Acceleration of Gravity Tilt Module
4x Pin Header
