SG90 Servo: High quality and high cost performance; Small size and light weight
Mini Servo Stall Torque 1.6kg/cm; Operating voltage: 3.7V～ 6V; Temperature range: -30℃ ～ 60℃; Dead band width: 5μsec.
SG90 9g micro servo motor for remote control helicopters, micro robot, RC car and boats, electronics DIY based on Ard.uino ,R.aspberry Pi and other models.
2PCS 9g Servo Weight: 9g； Size: 23*12*30mm.
Great digital mini servo for people who are interested in developing software for robot parts, Such as mechanical arm, Quadcopter Drone and other remote control equipment.

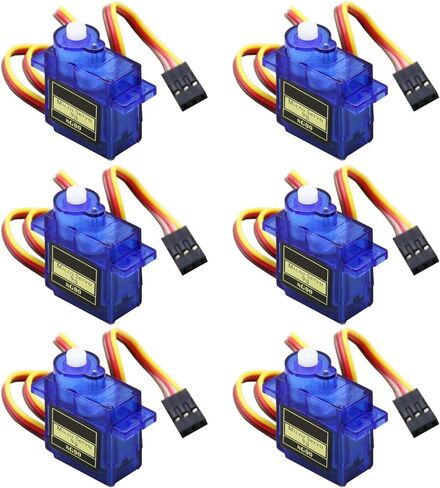

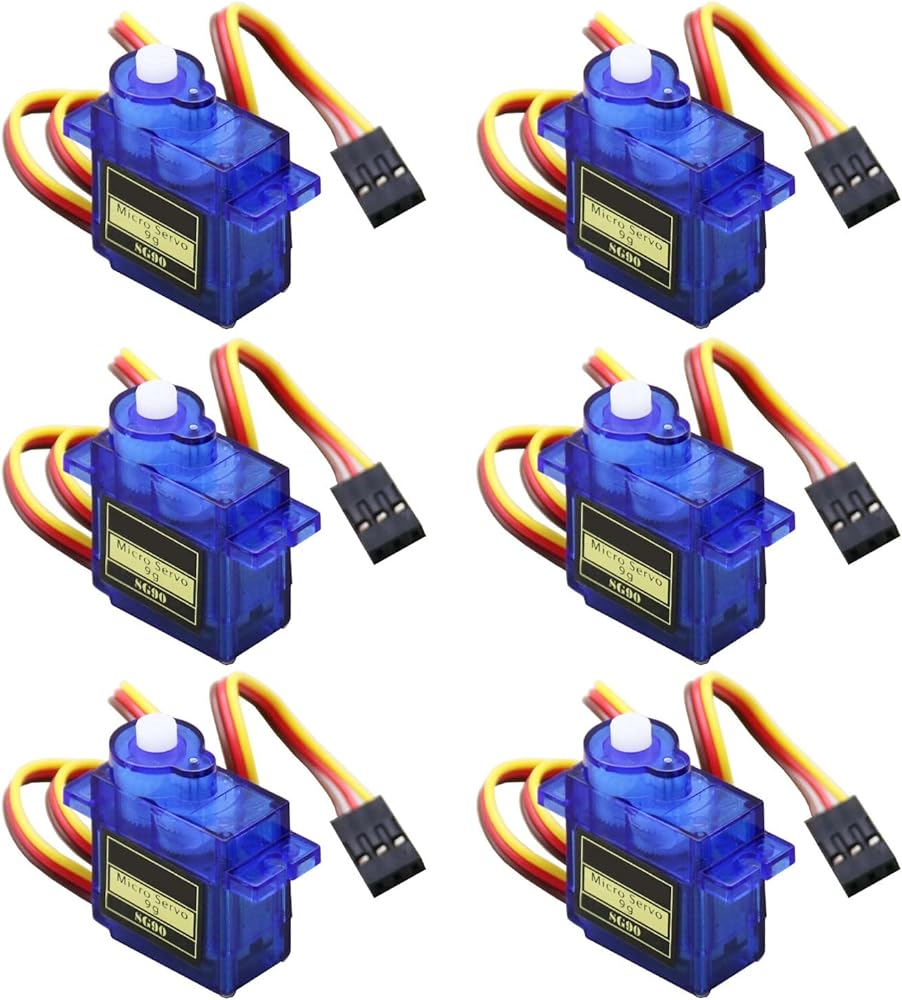

2PCS SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats.

electronics DIY based on Ard.uino,R.aspberry Pi and other models.

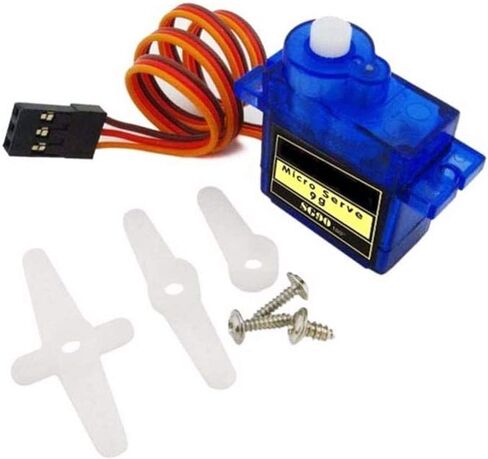

The SG90 mini servo motor is lightweight, high-quality and lightning-fast.

Specification:

Model: SG90

Weight: 9g

Size: 23*12*30mm

Stall torque: 1.6kg/cm

Operating speed: 0.12sec/60°at 4.8V; 0.1sec/60°at 6V

Operating voltage: 3.7～6V

Temperature range: -30℃～ 60℃

Dead band width: 5μs

Maximum rotation angle: 180°

Gear medium: nylon

Working mode: Simulation

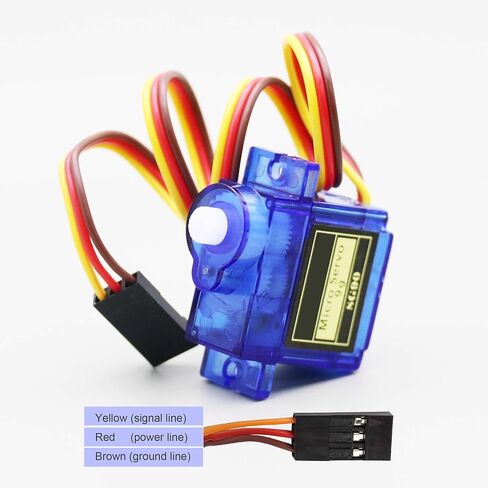

Circuit connection:

Yellow line (signal line)

Red line (power line)

Brown (ground)

Package includes:

2* SG90 10g Micro Servos
