Description:

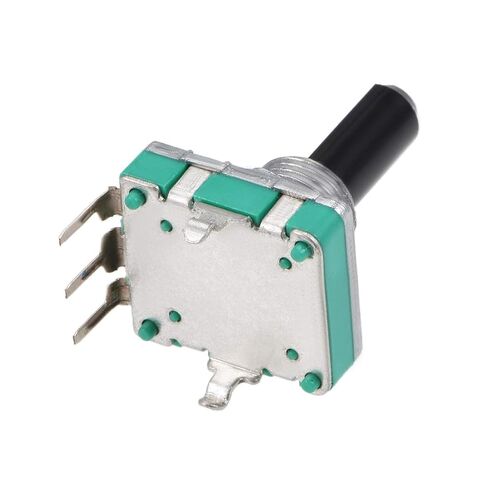

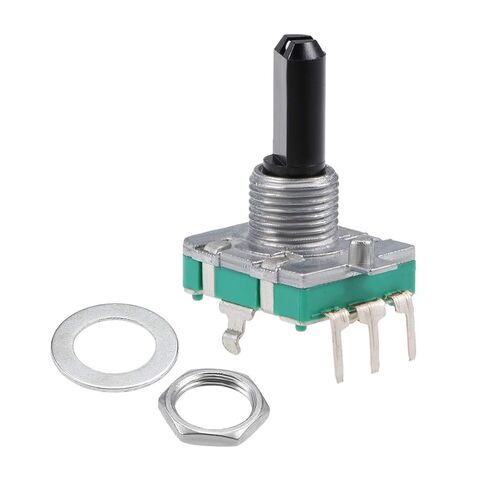

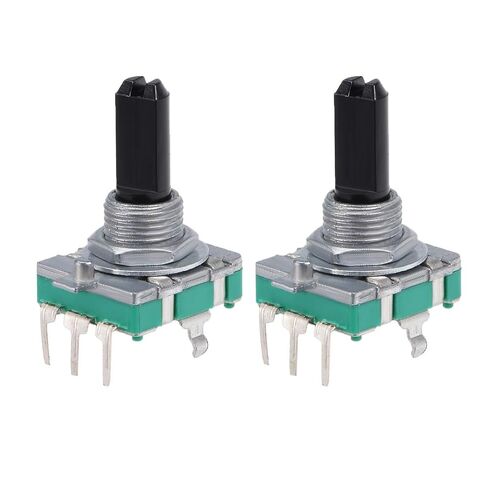

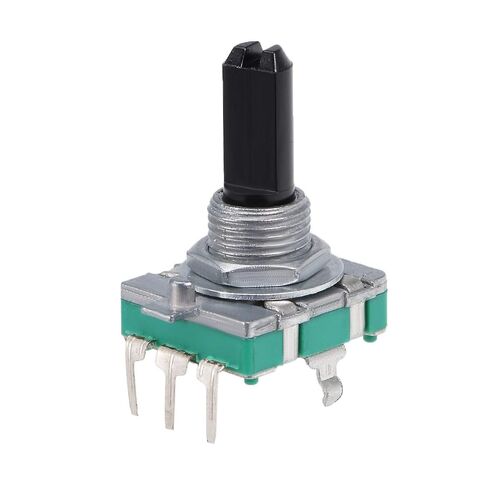

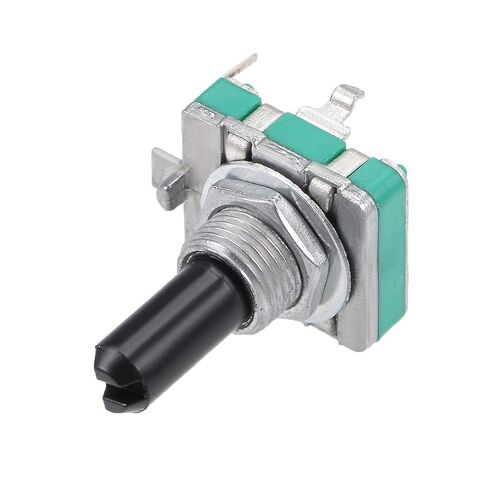

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals.
Rotary encoders are used in a wide range of applications that require monitoring or control, or both, of mechanical systems, including industrial controls, robotics, photographic lenses, computer input devices.

Specifications:
Adjustment method: 360 Degree
Pin Numbers: 5
Number of digits: 20 digits
Rated Voltage: 5 Volt
Shaft Type: D Type

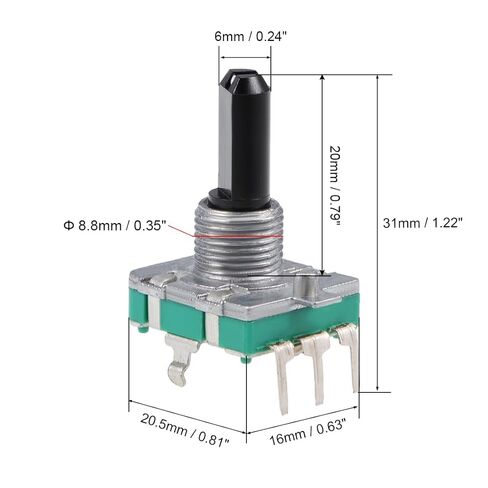

Shaft Diameter: 6mm/0.24"
Shaft Height: 20mm/0.79"
Thread Diameter: 8.8mm/0.35"
Total Dimension: 20.5mm x 16mm x 31mm / 0.81" x 0.63" x 1.22"(L*W*H)

Note:
Avoid storing the products in a place at high temperature, high humidity and in Corrosive gases.
Do not touch the product with water, as this may cause irregular output wave shape.
