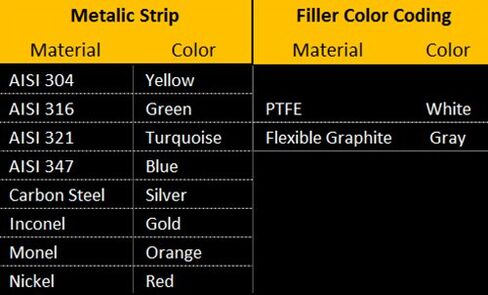

Sur-Seal, Inc. Teadit 9000IR10321GR600 Turquoise Band with Gray Stripe Spiral Wound Gasket with 321SS Inner Ring, 10" Pipe Size x 600# x (321SS/FG) for Applications with High Temperature Variations and/or Pressure Variations

KWD 59
Brand
Lamons
Category
Seals & O-Rings
Weight
1.6 kg
– 1 +

Special Features

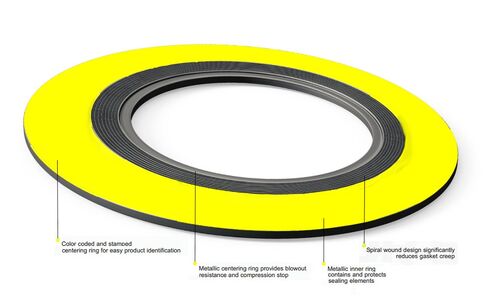

  • ASME B16.20 Gaskets for ASME B16.5 Flanges; Class 150; Inner ring protects sealing element from process media attack
  • Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter
  • Spiral winding (sealing element) consists of metal and soft filler material
  • Temperature range (F) : -320 to 850 Degrees
  • Durable; easy installation and removal

Description

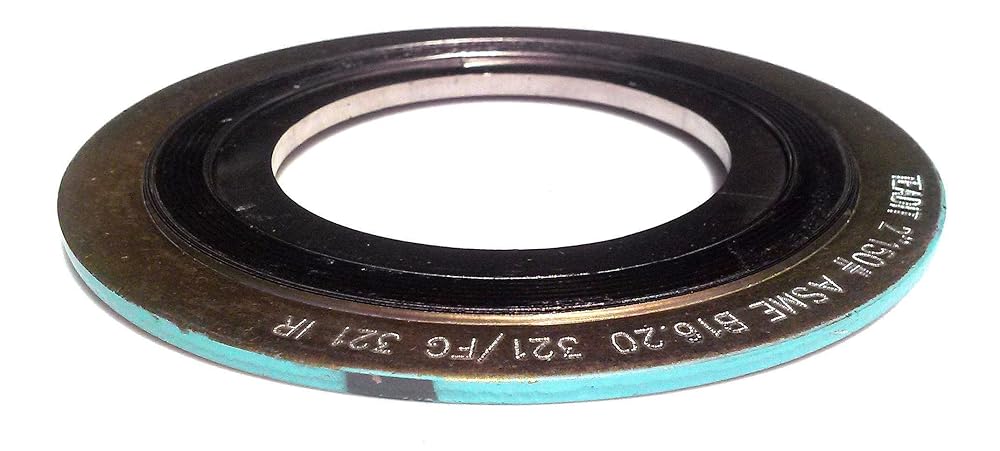

Spiral Wound Gasket with 321SS Inner Ring, 10" pipe size, 600# class flange, 321SS windings with a FG Filler
