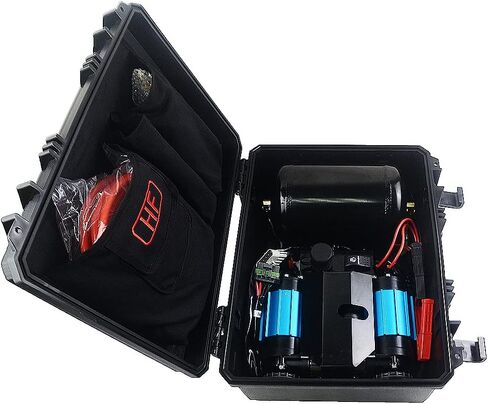

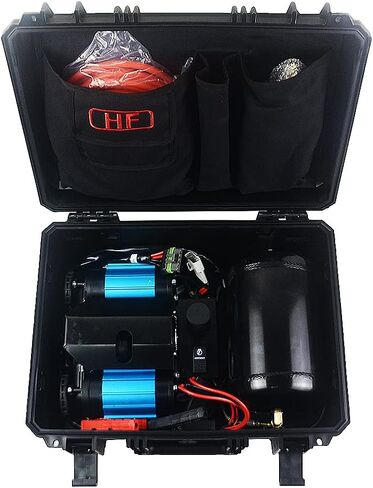

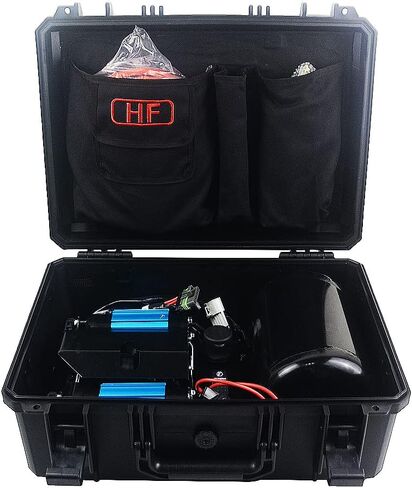

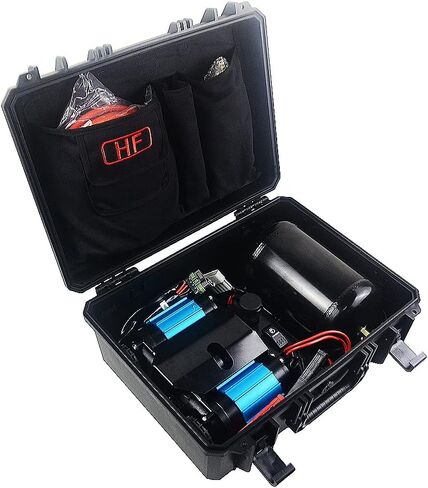

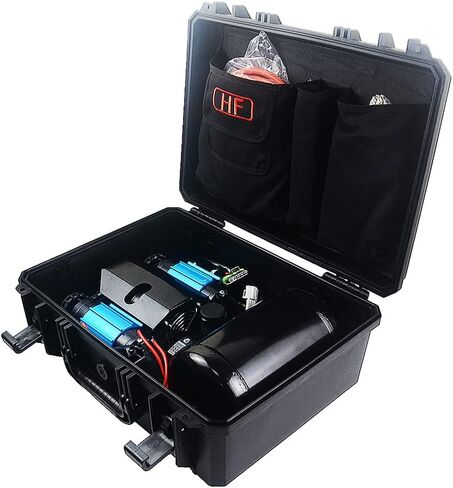

Portable High Performance 12V Twin Motor Air Compressor - Drilling, Air Brushing, Spraying, Nailing, Tire Inflator - Replacement For ARB CKMTP12

KWD 144.500
Brand
Bario
Weight
15.9 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Fitment: Universal. Suitable for drilling, air brushing, spraying, nailing. Tire inflator, air horn, air lockers, air tools and pneumatic tools.
  • Package Includes: Complete pack consisting of over 235 inches length PU tube, 4L gas tank, insertion tools, reamer tools, needle nose plyers, lubricant, additional valve accessories. All as shown in pictures.
  • Design: Compact dual motor, dual cylinder design. Internal thermal protection to prevent extreme temperature damage. Equipped with overpressure safety valve, dual-type maxi-fuses, professional online circuit protection and circuit redundancy. 12 Volts (CKMTA12). 4L air tank and pressure switch regulates pressure between 135 PSI and 150 PSI, suitable for most air-powered tools.
  • Part Numbers: Reference part numbers CKMTP12 12V Dual Cylinders High Performance Twin On-Board Air Compressor
  • Warranty: Our replacement products come with one-year manufacturer's free replacement warranty.
  • Specifications: Supply Voltage 12 Volts DC, Max Current Draw (each motor) 34.3 Amps @ 1030 kPa, Max Current Draw (total) 68.6 Amps @ 1030 kPa, Fuse Rating (each motor) 40 Amps, Relay Rating (each motor) 40 Amps, Weight (total kit) 15.7 kg, Dimensions 19.6 inches X 16.2 inches X 9.2 inches, Duty Cycle @ 22°C [72°F] 100 % / 60 minutes per hour, Pressure Switch Closed <930 kPa / <135 PSI, Pressure Switch Open > 1030 kPa / > 150 PSI, Safety Valve Pressure > 1240 kPa / > 180 PSI, Motor Thermal Cut-Out 115 °C / 239 °F, Max. Ambient Temperature 100 °C / 212 °F.
  • Performance @ No Load Test Pressure: 0 kPa / 0 PSI - Current Draw: 8.4 Amps - Air Flow Rate 174.4 L/min. / 6.1 CFM, Performance @ Tyre Pressure Test Pressure: 200 kPa / 29 PSI - Current Draw CKMTP12: 50.4 Amps - Air Flow Rate: 131L/min. / 4.6 CFM.

Description

Specs & Details:
SUPPLY VOLTAGE 12 Volts DC
MAX CURRENT DRAW (each motor) 34.3 Amps @ 1030 kPa
MAX CURRENT DRAW (total) 68.6 Amps @ 1030 kPa
FUSE RATING (each motor) 40 Amps
RELAY RATING (each motor) 40 Amps
WEIGHT (total kit) 15.7 kg
DIMENSIONS 19.6 inches X 16.2 inches X 9.2 inches
DUTY CYCLE @ 22°C [72°F] 100 % / 60 minutes per hour
PRESSURE SWITCH CLOSED PRESSURE SWITCH OPEN > 1030 kPa / > 150 PSI
SAFETY VALVE PRESSURE > 1240 kPa / > 180 PSI
MOTOR THERMAL CUT-OUT 115 °C / 239 °F
MAX. AMBIENT TEMPERATURE 100 °C / 212 °F
SPECS @ NO LOAD TEST PRESSURE: 0 kPa / 0 PSI - CURRENT DRAW: 8.4 Amps - AIR FLOW RATE 174.4 L/min. / 6.1 CFM
SPECS @ TYRE PRESSURE TEST PRESSURE: 200 kPa / 29 PSI - CURRENT DRAW CKMTP12: 50.4 Amps - AIR FLOW RATE: 131L/min. / 4.6 CFM

Kit Includes:
Over 235 inches length PU tube
4L gas tank, insertion
Reamer tools,
Needle nose plyers,
Lubricant,
Additional valve accessories.
Everything exactly as shown in pictures.

Applications：
Rapid inflation of small, medium and large tyres.
Air tools rated up to 174LPM (6.16CFM) continuous supply.
