Twinklebay DB9 Connector to Wiring Terminal RS232 Serial Port Breakout Board Solder-Free (Female Adapter)

KWD 4.500
Brand
Twinkle Bay
Weight
23 g
– 1 +

Special Features

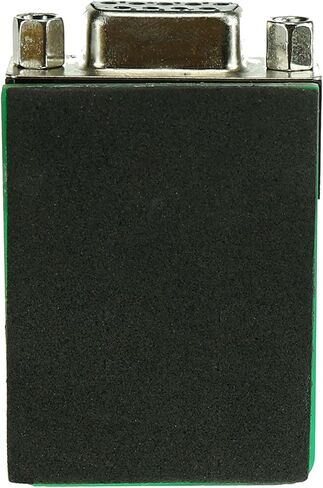

  • With insulation foam at the bottom
  • All-copper base, contacted better and more antioxidative

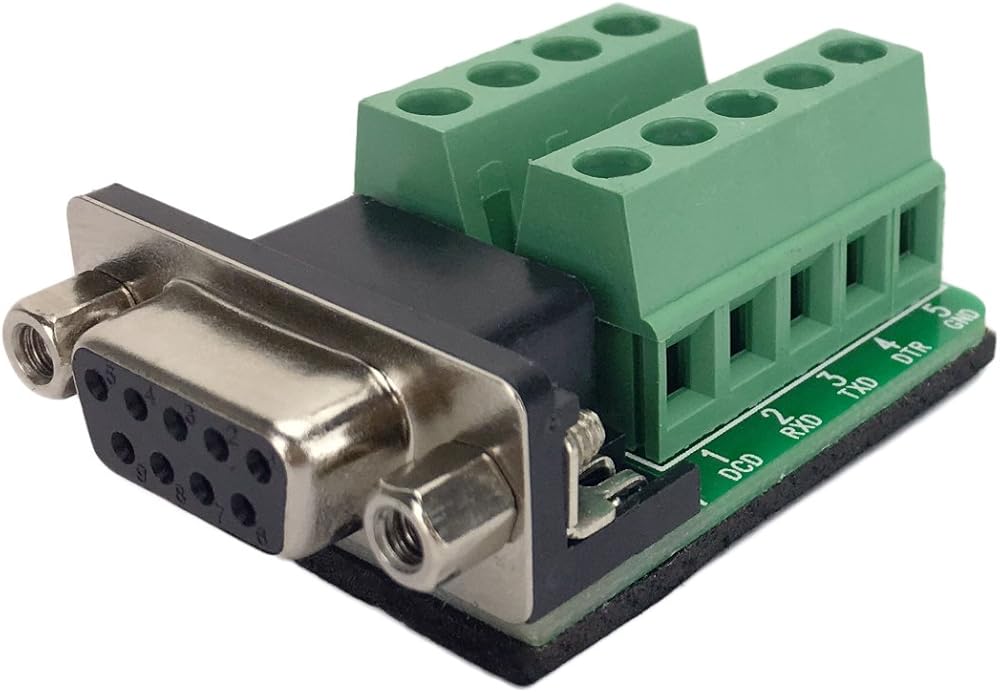

  • All signal ports named and labeled clearly
  • PCB carrier, FR-4 fiber glass PCB
  • Compliant assembly, multiple checked before fulfilled

Description

Net weight: 22g/0.77oz

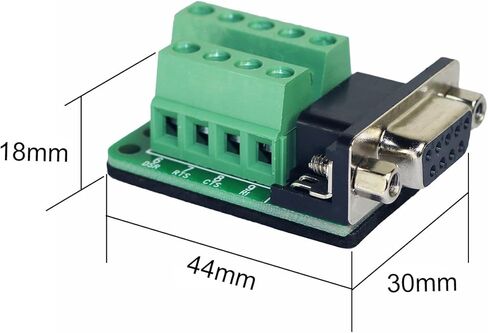

PCB dimensions(L x W): 1.57 x 1.18''/40 x 30mm
External dimension (L x W x H): 1.81 x 1.18 x 0.7"/46 x 30 x 18mm
Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.2''/5mm
Wire range: 22-12AWG
Rated current: 1A
Connect type: female with nut
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass

Package included:
1 x DB9 breakout board female adapter
