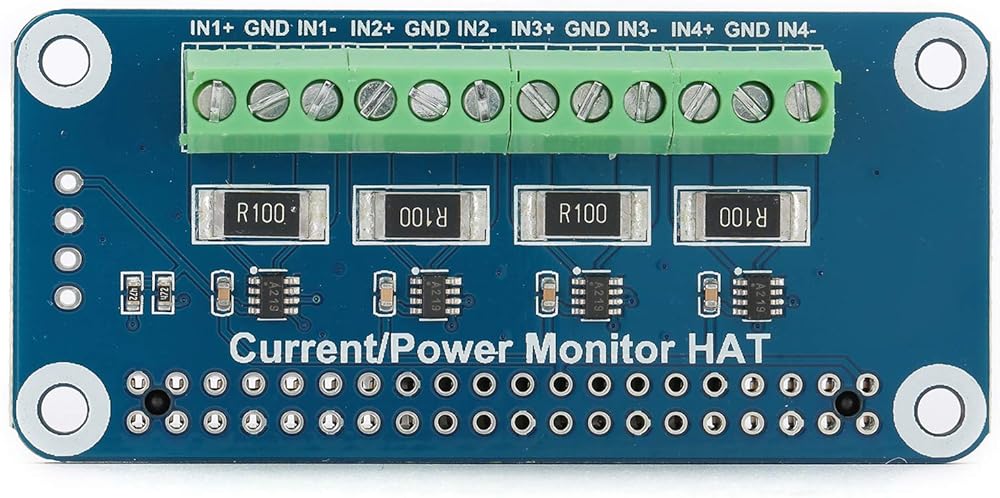

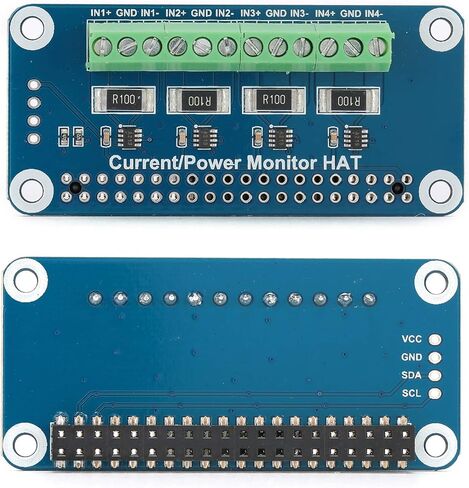

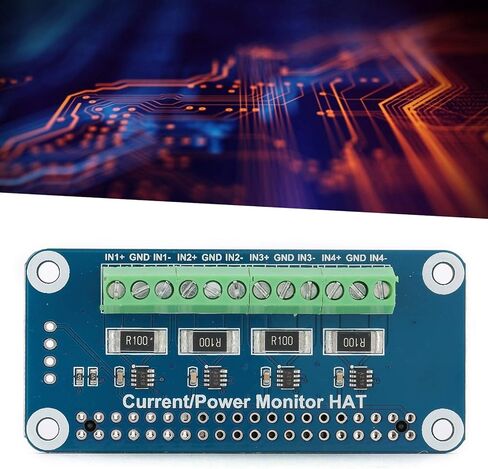

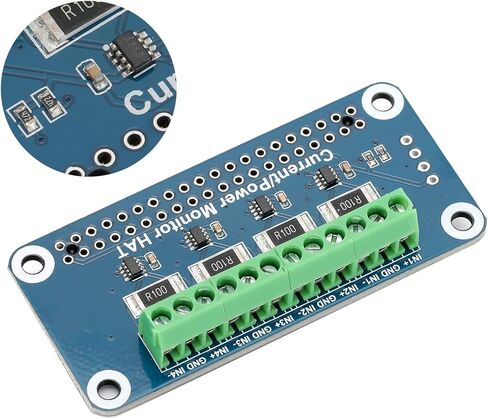

Sense HAT for Raspberry Pi Current Voltage Power Consumption Monitor with 12 Bit ADC, 40Pin GPIO Extension Header and I2C/SMBus Interface, Support Measure Bidirectional Current

KWD 7
Brand
ASHATA
Weight
23 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

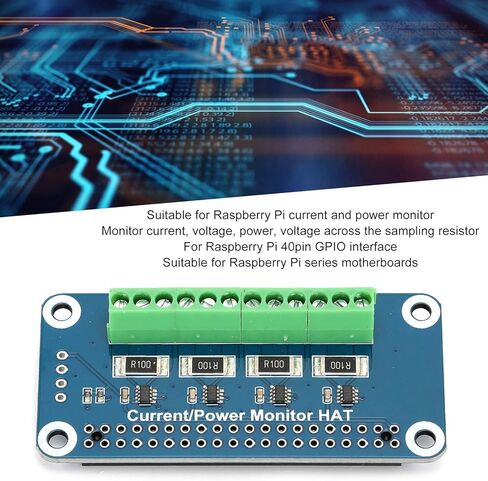

  • This product is suitable for Raspberry Pi current and power monitor, can monitor the current, voltage, power, voltage across the sampling resistor through the I2C/SMBus interface.
  • Based on for Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards.
  • The product support 4-channel detection, communication via I2C/SMBus interface.

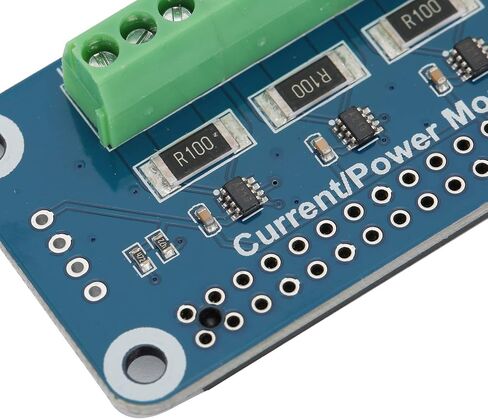

  • Onboard 0.1 ohm 1% sampling resistor, can measure bidirectional current, measuring current up to 3.2A.
  • Builtin 12bit ADC, can set continuous multiple conversion, the measurement voltage range supports 0~26V.

Description

Specification:
Item Type: Sense HAT for Raspberry Pi
Working Voltage: 3.3V/5V
Control Interface: I2C/SMBus
Sampling Resistance: 0.1 ohm 1%
Voltage Range: 0~26V
Current Range: ±3.2A
Resolution: 0.8mA (range ±3.2A) or 0.1mA (range ±400mA)
Through Hole Diameter: Approx. 3.0mm / 0.1in

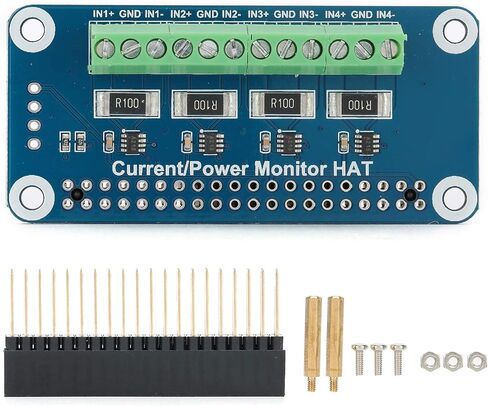

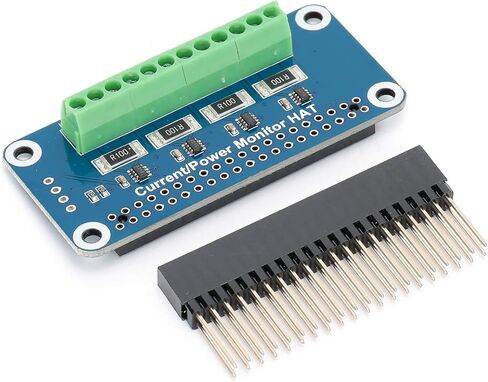

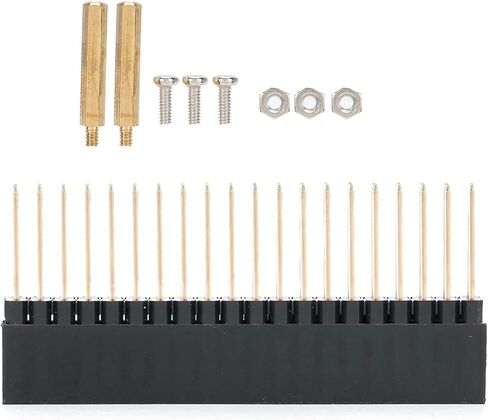

Package List:
1 x Sense HAT for Raspberry Pi
1 x Pin Header
3 x Screw
3 x Nut
2 x Connection Column
