12VRS550 40000RPM

KWD 11
Model12VRS550 40000RPM
– 1 +

Special Features

  • 2Pcs 12Volt RS550 40000RPM 24Volt 40000RPM Fast Electric Motor Drive Engine for Power Wheels Motor Upgrade,High Speed Motor Gearbox Accessories for Kid Ride on Toys Car Motor Upgrade Replacement Parts,Hot Horse Motor,12V&18V&20V&24V,8T&9T&10T&12T&16T

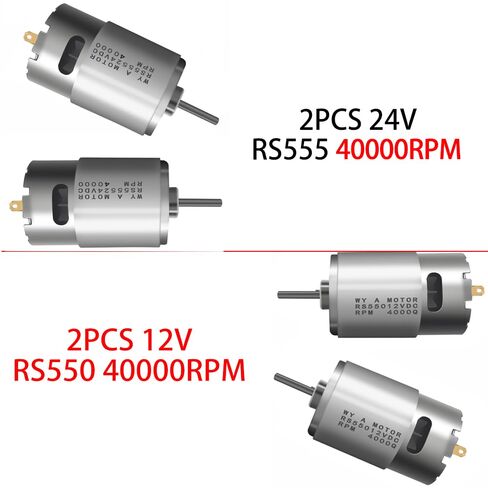

  • Choice: If Your Power Supply Voltage is <12V, Please Choose 12VRS550 (When the Battery Voltage is 12V and the Motor Speed is 40000 Rpm, When the Battery Voltage is 6V and the Motor Speed is 13000 Rpm); If Your Power Supply Voltage is>12v, Please Select 24VRS555 (When 24V Power Supply, Motor Speed is 35000rpm. When 18V Power Supply, Motor Speed is 18000rpm. When 12V Power Supply, Motor Speed is 10000rpm)
  • [Advantages]: The Motor Adopts 40000RPM High-Speed Motor, Which Matches Pure Copper Winding Coils and High-Quality Cooling Fans, Which Can Greatly Improve the Speed and Life. After Comparison, It Can Usually Increase the Speed By 2 Times Than the Original Motor.
  • [Widely Applicable]: It Contains 7 Kinds of Teeth of Different Specifications, Which can be Widely Used in Various Types of Motor Gearboxes. There is No Need to Worry About the Different Teeth.(Including 8 Teeth, 9 Teeth, 10 Teeth, 12 Teeth, 16 Teeth)

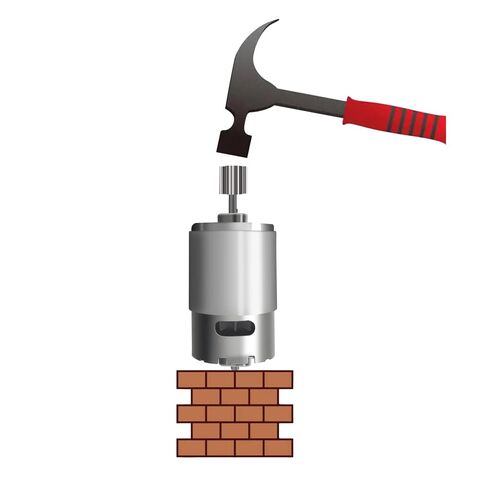

  • [Installation Method]: Compare the Steel Teeth on the Original Motor, Select the Teeth of the Same Size, And then Use Hammer to Knock on the Motor Shaft (Please Place the Bottom of the Motor on Solid Surface as Shown in the Figure to Beat), The Motor Cable Can be Installed on the Motor Copper Sheet with One Key.

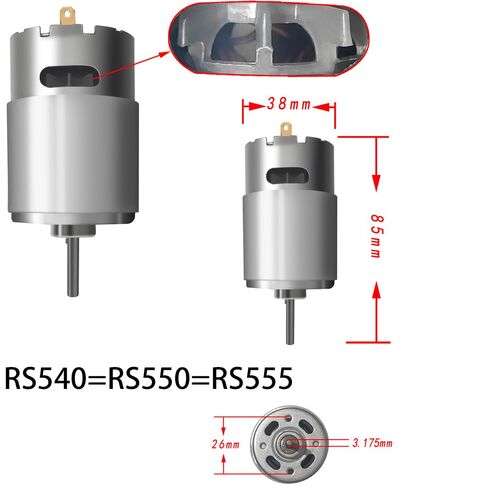

  • Attention: Before Purchasing, Please Remove the Original Motor and Carefully Compare the Motor Size and the Size of the Motor Teeth to Ensure that the Motor Size is Consistent and the Motor Teeth Match Our Seven Types of Motor Teeth,And Choose a Reasonable Voltage

Description

12VRS550 Power: 45W
24VRS555 Power: 180W

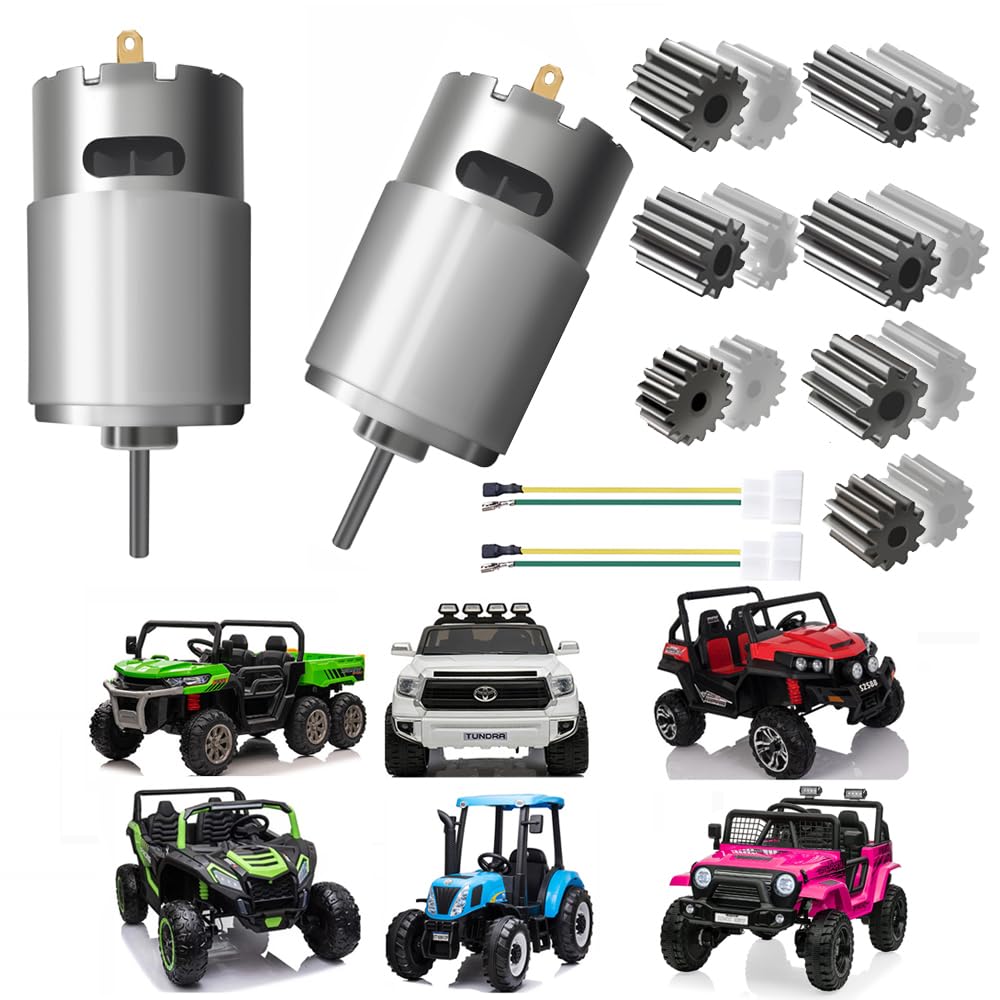

The product includes: 2 motors, 7 different types of motor teeth (2 for each type), 2 cables
Introduction:
12V:If your power supply voltage is less than 12V, please choose 12VRS550 (when the battery voltage is 12V and the motor speed is 40000 RPM, when the battery voltage is 6V and the motor speed is 13000 RPM)
24V:If your power supply voltage is>12V, please select 24VRS555 (When 24V Power Supply, Motor Speed is 35000RPM. When 18V Power Supply, Motor Speed is 18000RPM. When 12V Power Supply, Motor Speed is 10000RPM)
 Note:
1.This is a high-speed motor. The power is relatively large and the current is very high. Before you change, please ensure that your car can withstand, otherwise it is easy to burn.

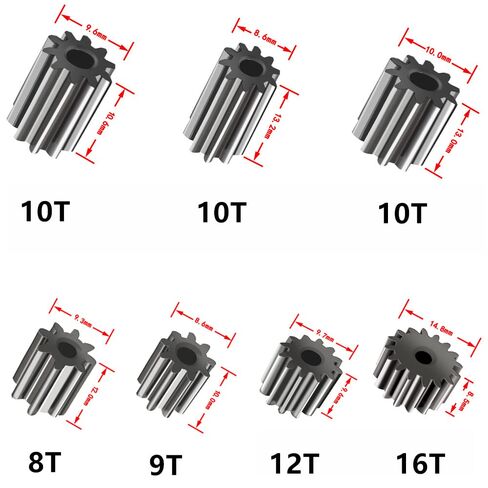

2. 7 kinds of motor gears of different specifications are presented, please choose the same gear as the original motor gear.
3. There are 2 motors and 7 different gears in one box.
4.Free 2 cables for your convenience.
5.When you decide which tooth to use, you can use a hammer to attach the tooth to the motor, just as the picture describes.
