Special Features

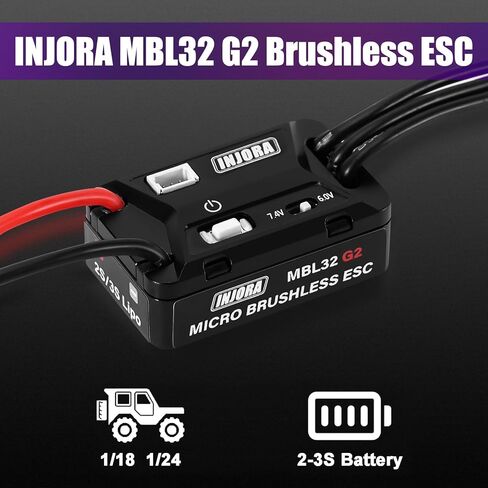

The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V.
Waterproof Design for all-weather performance.
Supports PC Programming via USB programmer card (Not Included). Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.

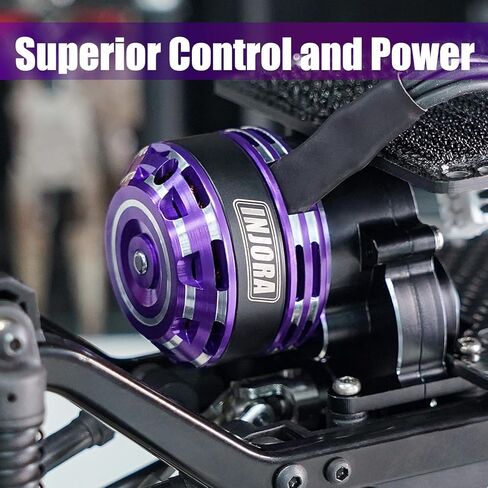

TRX4M 2204 fat viper outrunner motor will give your car a better driving performance.

Description

ESC Specifications
Part Number: MBL32 G2
LiPo Cells: 2-3S
Continuous Current: 25A
Peak Current: 60A
BEC Output: 6.0V/7.4V adjustable
BEC Current: 3A

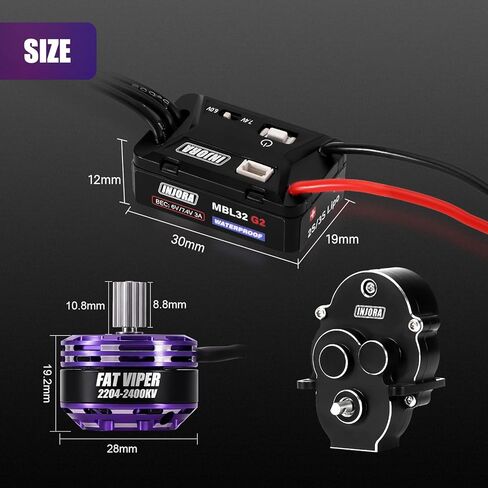

Dimensions (L*W*H): 30*19*12mm
Waterproof: Yes
App Tuning: Not Supported
Weight: 0.45oz (13g)
Motor Specifications
Model Number: 2204
Motor Type: Sensorless Brushless Outrunner
RPM/Volt: 2400KV
Motor Poles: 14
Sine Mode Power: 7
Max Power: 2500W
No-Load Current: 0.7A
Max Peak Current: 50A
Motor Connectors: PH2.0 3Pin
Dimensions: 28*19.2mm
Motor Qutput Shaft: 2mm
Motor Pinion: 0.4mod 11T
Weight: 28g
Transmission Specifications:
Housing Material: Aluminum
Gears Material: Stainless Steel
Internal Gears: 24.4:1 gear set, underdrive 32%

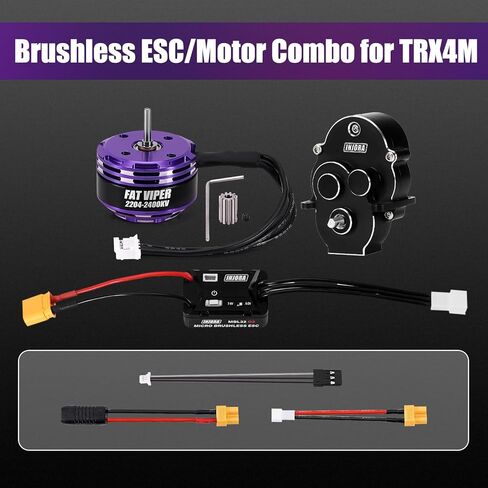

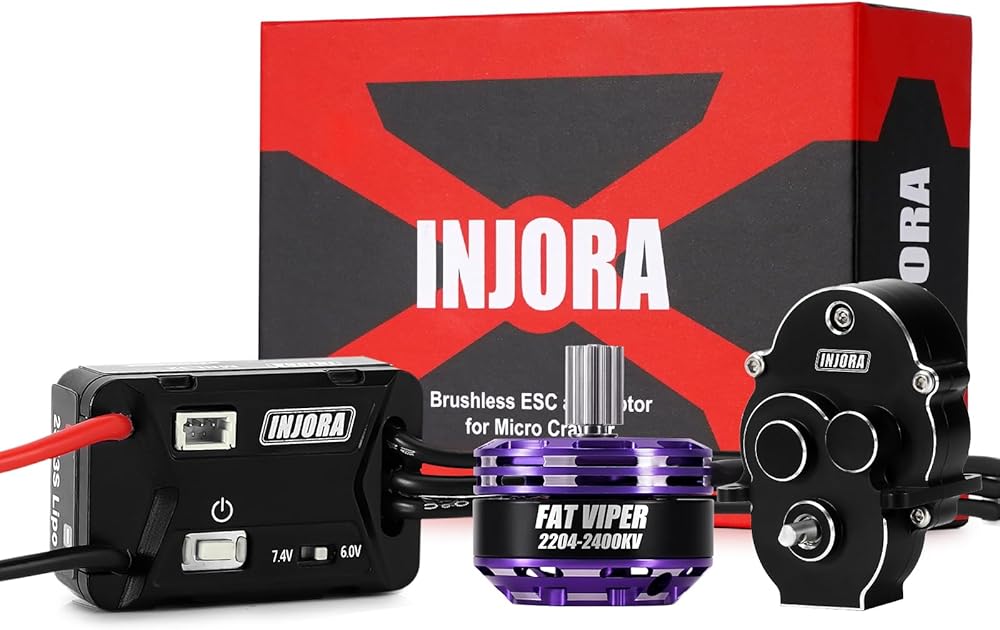

Package List
1 * Micro Brushless ESC
1 * 2204 Fat Viper Motor
1 * 370 Aluminum Transmission

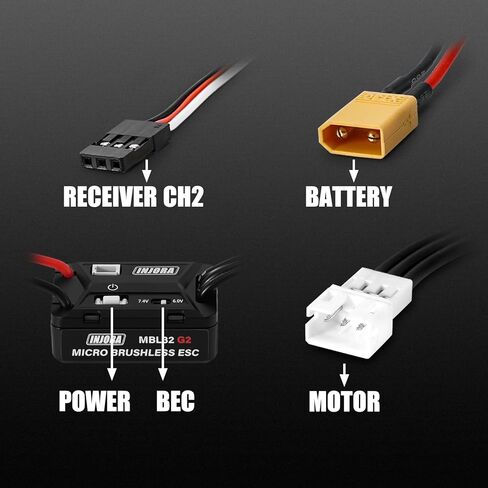

1 * Receiver Connector Cable
1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
1 * Instruction Manual

Hello,

Search

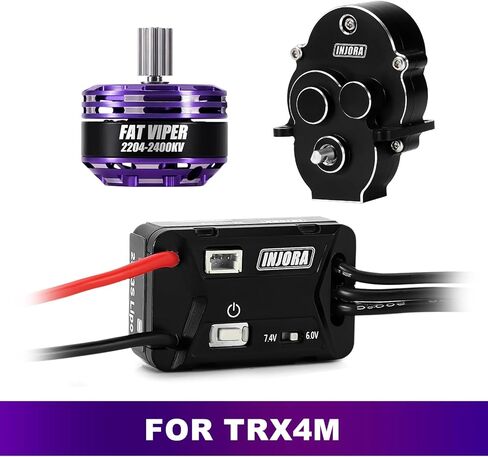

INJORA MBL32 G2 Waterproof Brushless ESC & 2204 Fat Viper Outrunner Motor for 1/18 TRX4M Upgrade
